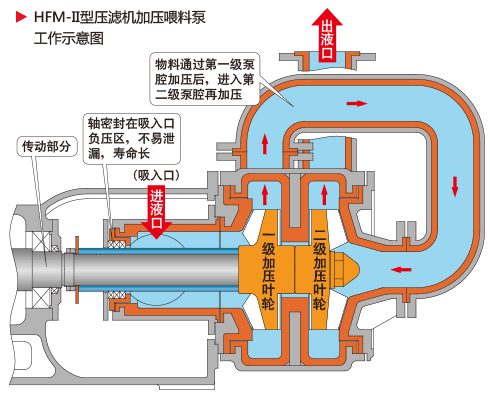

HFM系列無泄漏耐腐耐磨泵是一種新型的襯里型后吸式（軸密封位置與進液口同向）的耐腐耐磨泵。該泵是總結了普通耐腐耐磨泵，在運行時，密封容易泄漏的情況下開發的一種新型壓力輸送泵。其主要特點是：

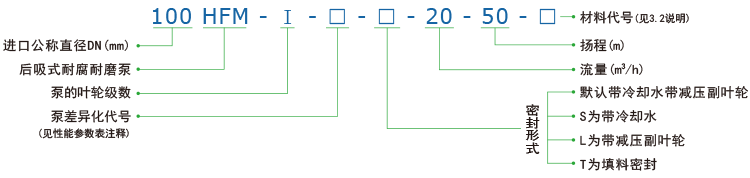

一、型號說明

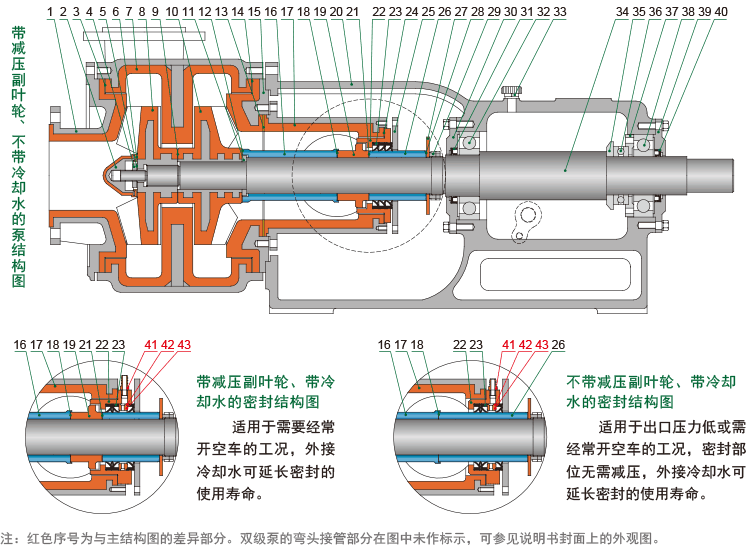

HFM-2型雙級壓濾機泵結構圖

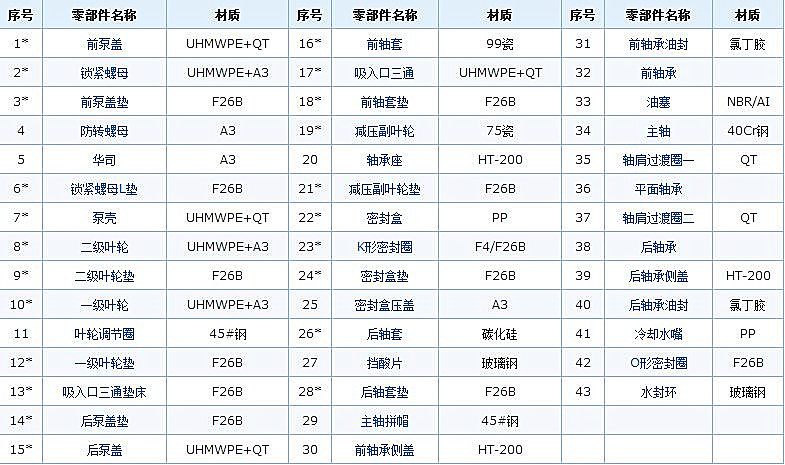

注：序號后帶有"*"標志的為易損件，供用戶采購備件參考
減壓副葉輪(19)主要起平衡流體壓力的作用。
本說明書中的規格型號默認均指帶減壓副葉輪帶冷卻水的泵；如客戶需使用不帶冷卻水或不帶減壓副葉輪的泵，請與我公司銷售部聯系，以便備案存檔。
HFM-II型雙級泵的性能參數表
| 序號 | 規格 | 參考型號 | 流量 (m3/h) | 揚程 (m) | 配備電機 | 轉速 (r/min) | 重量 (kg) | 進口×出口 直徑 |
| 1 | 65HFM-II | 65HFM-II-10-60 | 10 | 60 | 11kW-2 | 2900 | 460 | 65×50 |
| 2 | 65HFM-II-10-70 | 10 | 70 | 11kW-2 | 2900 | 460 | ||
| 3 | 65HFM-II-10-80 | 10 | 80 | 15kW-2 | 2900 | 480 | ||
| 4 | 65HFM-II-10-90 | 10 | 90 | 15kW-2 | 2900 | 480 | ||
| 5 | 65HFM-II-10-100 | 10 | 100 | 22kW-2 | 2900 | 550 | ||
| 6 | 65HFM-II-15-60 | 15 | 60 | 11kW-2 | 2900 | 460 | ||
| 7 | 65HFM-II-15-70 | 15 | 70 | 15kW-2 | 2900 | 480 | ||
| 8 | 65HFM-II-15-80 | 15 | 80 | 15kW-2 | 2900 | 480 | ||
| 9 | 65HFM-II-15-90 | 15 | 90 | 18.5kW-2 | 2900 | 520 | ||
| 10 | 65HFM-II-15-100 | 15 | 100 | 22kW-2 | 2900 | 550 | ||
| 11 | 65HFM-II-20-60 | 20 | 60 | 15kW-2 | 2900 | 480 | ||
| 12 | 65HFM-II-20-70 | 20 | 70 | 15kW-2 | 2900 | 480 | ||
| 13 | 65HFM-II-20-80 | 20 | 80 | 18.5kW-2 | 2900 | 520 | ||
| 14 | 65HFM-II-30-60 | 30 | 60 | 18.5kW-2 | 2900 | 520 | ||
| 15 | 65HFM-II-30-70 | 30 | 70 | 22kW-2 | 2900 | 550 | ||
| 16 | 65HFM-II-30-80 | 30 | 80 | 22kW-2 | 2900 | 550 | ||
| 17 | 65HFM-II-30-90 | 30 | 90 | 30kW-2 | 2900 | 580 | ||
| 18 | 65HFM-II-30-100 | 30 | 100 | 37kW-2 | 2900 | 630 | ||
| 19 | 80HFM-II | 80HFM-II-20-60 | 20 | 60 | 15kW-2 | 2900 | 490 | 80×65 |
| 20 | 80HFM-II-20-70 | 20 | 70 | 15kW-2 | 2900 | 490 | ||
| 21 | 80HFM-II-20-80 | 20 | 80 | 18.5kW-2 | 2900 | 530 | ||
| 22 | 80HFM-II-30-60 | 30 | 60 | 18.5kW-2 | 2900 | 530 | ||
| 23 | 80HFM-II-30-70 | 30 | 70 | 22kW-2 | 2900 | 560 | ||
| 24 | 80HFM-II-30-80 | 30 | 80 | 22kW-2 | 2900 | 560 | ||
| 25 | 80HFM-II-30-90 | 30 | 90 | 30kW-2 | 2900 | 580 | ||
| 26 | 80HFM-II-30-100 | 30 | 100 | 37kW-2 | 2900 | 630 | ||
| 27 | 80HFM-II-40-60 | 40 | 60 | 18.5kW-2 | 2900 | 530 | ||
| 28 | 80HFM-II-40-70 | 40 | 70 | 22kW-2 | 2900 | 560 | ||
| 29 | 80HFM-II-40-80 | 40 | 80 | 30kW-2 | 2900 | 580 | ||
| 30 | 80HFM-II-40-90 | 40 | 90 | 30kW-2 | 2900 | 580 | ||
| 31 | 80HFM-II-40-100 | 40 | 100 | 37kW-2 | 2900 | 630 | ||
| 32 | 80HFM-II-H2 | 80HFM-II-H2-30-70 | 30 | 70 | 15kW-4 | 1450 | 900 | 80×65 |
| 33 | 80HFM-II-H2-30-120 | 30 | 120 | 30kW-2 | 2900 | 900 | ||
| 34 | 80HFM-II-H2-40-100 | 40 | 100 | 30kW-2 | 2900 | 900 | ||
| 35 | 80HFM-II-H2-45-65 | 45 | 65 | 18.5kW-4 | 1450 | 900 | ||
| 36 | 100HFM-II | 100HFM-II-40-60 | 40 | 60 | 18.5kW-2 | 2900 | 540 | 100×80 |
| 37 | 100HFM-II-40-70 | 40 | 70 | 22kW-2 | 2900 | 570 | ||
| 38 | 100HFM-II-40-80 | 40 | 80 | 30kW-2 | 2900 | 590 | ||
| 39 | 100HFM-II-50-60 | 50 | 60 | 22kW-2 | 2900 | 570 | ||
| 40 | 100HFM-II-50-70 | 50 | 70 | 30kW-2 | 2900 | 590 | ||
| 41 | 100HFM-II-50-80 | 50 | 80 | 30kW-2 | 2900 | 590 | ||
| 42 | 100HFM-II-50-90 | 50 | 90 | 37kW-2 | 2900 | 680 | ||
| 43 | 100HFM-II-50-100 | 50 | 100 | 45kW-2 | 2900 | 710 | ||
| 44 | 100HFM-II-60-55 | 60 | 55 | 30kW-2 | 2900 | 590 | ||
| 45 | 100HFM-II-60-60 | 60 | 60 | 30kW-2 | 2900 | 590 | ||
| 46 | 100HFM-II-60-70 | 60 | 70 | 37kW-2 | 2900 | 680 | ||
| 47 | 100HFM-II-60-80 | 60 | 80 | 37kW-2 | 2900 | 680 | ||
| 48 | 100HFM-II-60-90 | 60 | 90 | 45kW-2 | 2900 | 710 | ||
| 49 | 100HFM-II-70-50 | 70 | 50 | 30kW-2 | 2900 | 590 | ||
| 50 | 100HFM-II-70-60 | 70 | 60 | 37kW-2 | 2900 | 680 | ||
| 51 | 100HFM-II-70-70 | 70 | 70 | 37kW-2 | 2900 | 680 | ||
| 52 | 100HFM-II-70-80 | 70 | 80 | 45kW-2 | 2900 | 710 | ||
| 53 | 100HFM-II-70-90 | 70 | 90 | 55kW-2 | 2900 | 800 | ||
| 54 | 100HFM-II-80-50 | 80 | 50 | 37kW-2 | 2900 | 680 | ||
| 55 | 100HFM-II-80-60 | 80 | 60 | 37kW-2 | 2900 | 680 | ||
| 56 | 100HFM-II-80-70 | 80 | 70 | 45kW-2 | 2900 | 710 | ||
| 57 | 100HFM-II-80-80 | 80 | 80 | 55kW-2 | 2900 | 800 | ||
| 58 | 100HFM-II-80-90 | 80 | 90 | 55kW-2 | 2900 | 800 | ||
| 59 | 100HFM-II-H2 | 100HFM-II-H2-60-70 | 60 | 70 | 30kW-4 | 1450 | 1000 | 100×80 |
| 60 | 100HFM-II-H2-60-120 | 60 | 120 | 45kW-2 | 2900 | 1000 | ||
| 61 | 100HFM-II-H2-80-60 | 80 | 60 | 30kW-4 | 1450 | 1000 | ||
| 62 | 100HFM-II-H2-80-100 | 80 | 100 | 55kW-2 | 2900 | 1000 | ||
| 63 | 125HFM-II-H2 | 125HFM-II-H2-35-110 | 35 | 110 | 45kW-2 | 2900 | 760 | 125×100 |
| 64 | 125HFM-II-H2-70-100 | 70 | 100 | 55kW-2 | 2900 | 820 | ||
| 65 | 125HFM-II-H2-80-50 | 80 | 50 | 37kW-2 | 2900 | 730 | ||
| 66 | 125HFM-II-H2-80-60 | 80 | 60 | 37kW-2 | 2900 | 730 | ||
| 67 | 125HFM-II-H2-80-70 | 80 | 70 | 45kW-2 | 2900 | 760 | ||
| 68 | 125HFM-II-H2-80-80 | 80 | 80 | 55kW-2 | 2900 | 820 | ||
| 69 | 125HFM-II-H2-80-90 | 80 | 90 | 55kW-2 | 2900 | 820 | ||
| 70 | 125HFM-II-H2-100-80 | 100 | 80 | 55kW-2 | 2900 | 820 |
注：泵差異化代號中的H2為高揚程泵，與常規泵零部件不通用，具體請與我公司確認；
表中配備電機功率是在密度ρ=1時的參考值，實際電機功率應大于軸功率×介質密度ρ。
